Publigraph

Evident qualities

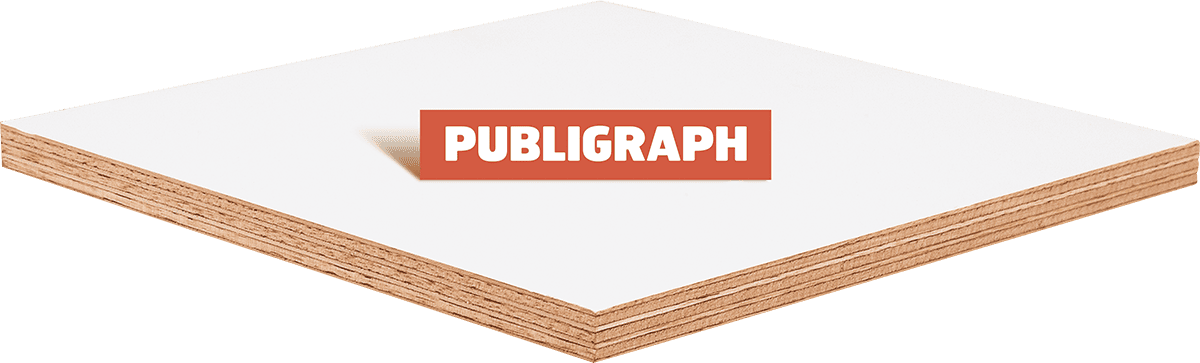

Publigraph is a selected Okoume throughout plywood coated with a smooth white 205 g/m² melamine film on both faces. It offers great flexibility in use (average density, ease of cutting and machining, exterior and interior uses). Its film does not need special protection: the panel is particularly recommended for making display panels, sign boards, signage and rear truck doors. Perfect sealing of the edges, which are not filmed, must be implemented like any other plywood.

Joubert solutions

Events
  • Selected Okoume
  • Smooth white 205 g/m² melamine film on 2 faces
  • US EPA TSCA Title VI - CARB ULEF
  • FSC
  • NF
  • CE

Description

  • Screen printing, advertising strips, exterior signage, rear doors of lorries, industrial bodywork

Gluing

  • Exterior gluing Class 3 - E1

Standards

  • NF Extérieur CTB-X (for structural use)
  • CE marking in accordance with EN 13986
  • Classification of faces in accordance with the standard, EN 635-2
  • Gluing in accordance with the standard, EN 314-2

Other

  • For FSC®-certified panels, depending on availability, contact us.

Additional services

Read the documentation (PDF)

Applications Publigraph

  • Screen printing
  • Advertising panels
  • Exterior signage

Standard Thicknesses - Sizes

Thicknesses

  • 10 mm
  • 12 mm
  • 15 mm
  • 18 mm

Sizes

  • 310 x 153 cm

Declarations of Performances (DoP) Publigraph | VAF3

Select thickness to display the DoP (PDF) :
