Joubert Garant

Durability and aesthetic qualities for façades

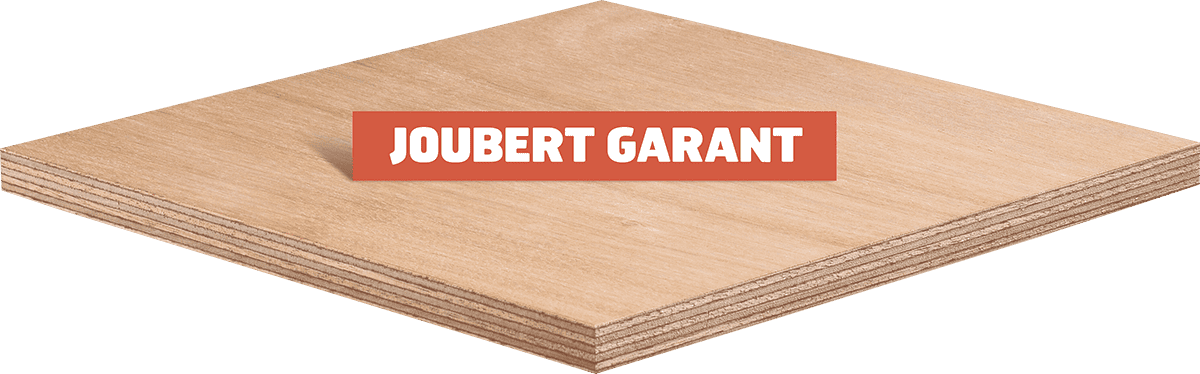

Joubert Garant Okoume plywood (Cladding) is used on the most remarkable sites and is a reference building product, compliant with the DTU Cladding 41.2. It is certified NF Extérieur CTB-X (for structural use) and is completely suitable for prolonged exposure to bad weather: façades, soffits for houses. The natural aspect of wood and selection of paint colours makes Joubert Garant Okoume plywood (Cladding) the reference product for construction and architecture for individual or collective dwellings. It should be used according to the rules for maximum durability. Joubert Garant Okoume plywood (Cladding) can be delivered pre-painted in white and ultra-smooth ready to be painted.

Okoume throughout
Rotary cut face veneers II/II

Description

Complies with the DTU Cladding 41.2
Construction: exterior façade - cladding
Marking of the panel on the plywood

Gluing

Exterior gluing Class 3 - E1
Particular attention must be given in achieving perfect watertightness for the edges of plywood panels used in exterior surroundings.

Standards

NF Extérieur CTB-X (for structural use)
CE marking in accordance with EN 13986
Classification of faces in accordance with the standard, EN 635-2
Gluing in accordance with the standard, EN 314-2
The marking of the panel will be done on the first quality face veneer

Other

For FSC®-certified panels, depending on availability, contact us.

Additional services

Read the documentation (PDF)

Download EPD (PDF)

Applications Joubert Garant

Cladding
Exterior joinery
Soffits
Exterior fittings

Standard Thicknesses - Sizes

Thicknesses

4 mm
5 mm
6 mm
8 mm
9 mm
10 mm
12 mm
15 mm
18 mm
20 mm
22 mm
25 mm
30 mm
35 mm
40 mm

Sizes

215 x 95 cm
215 x 100 cm
235 x 95 cm
235 x 100 cm
250 x 122 cm
250 x 153 cm
310 x 122 cm
310 x 153 cm

Declarations of Performances (DoP) Joubert Garant | 8

Select thickness to display the DoP (PDF) :
