Joubert Aludoor

The technical panel for doors

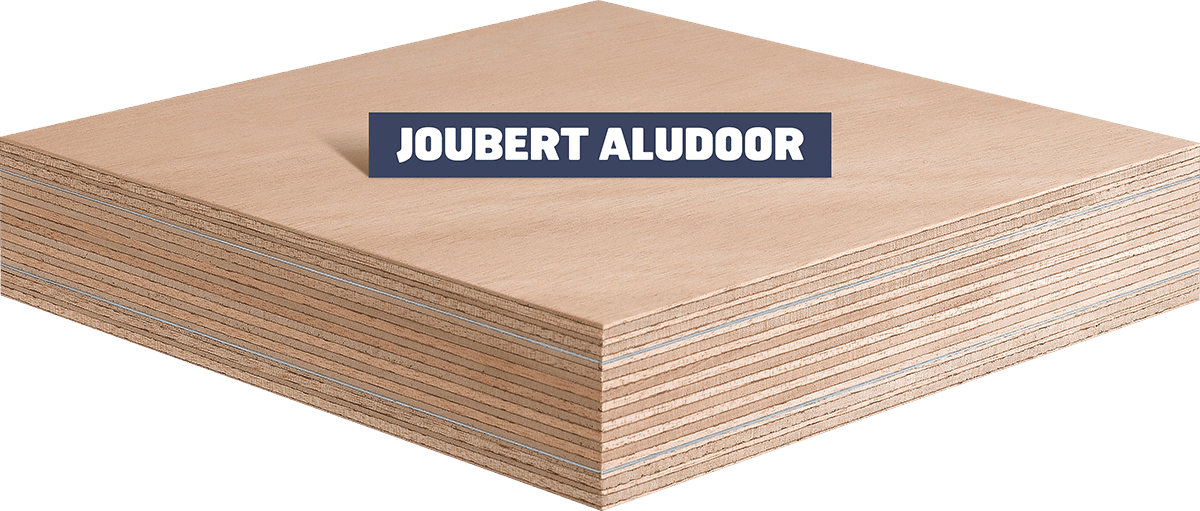

Joubert Aludoor is a clever combination of Okoume and aluminium sheets. It is a technical panel specially designed for making doors and for industrial joinery. It is very resistant, does not bend, does not distort and can be used outdoors. It is of a quality for grooving and is available in raw, pre-painted and filmed versions.

Okoume throughout with 2 sheets of aluminium
Faces II/II
Available in an 80-micron acrylic version pre-painted on both faces
Available in a version that is 280 gr/m² white filmed on both faces (to be painted)

Description

The Joubert Aludoor panel is intended for making doors.
The aluminium sheet serves as a moisture barrier, provides better stability and prevents excessive distortion of the panel.
Panel of a quality for grooving.

Gluing

Exterior gluing Class 3 - E1

Standards

Classification of faces in accordance with the standard, EN 635-2
Gluing in accordance with the standard, EN 314-2

Other

For FSC®-certified panels, depending on availability, contact us.
Particular attention must be given in achieving perfect watertightness for the edges of plywood panels used in exterior surroundings.

Additional services

Read the documentation (PDF)

Applications Joubert Aludoor

Entrance doors

Standard Thicknesses - Sizes

Thicknesses

40 mm

Sizes

215 x 95 cm
235 x 95 cm
235 x 105 cm
250 x 122 cm

Declarations of Performances (DoP) Joubert Aludoor | VAP4

Select thickness to display the DoP (PDF) :

40 mm
40 mm
